PA770300000 (1)

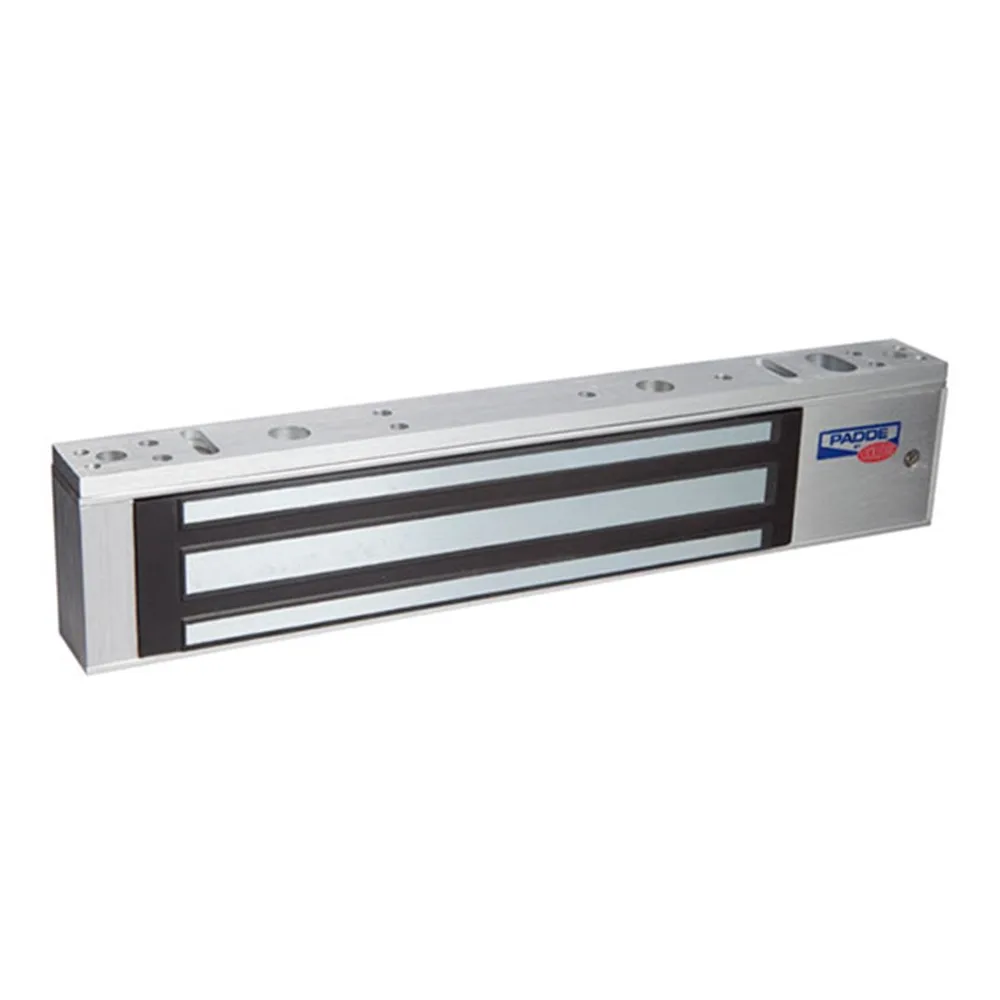

Lockwood Padde EMZ4-SN 280kg Single Electro Magnetic Lock, Non-Monitored

0 out of 5

  • Description

Description

Padde Z series single non monitored electromagnetic lock.

With fixing options including wood, aluminium and steel constructions, as well as glass door applications, the range caters to most electromagnetic needs.

FEATURES

  • Padde Z4 single mini magnetic lock.
  • 238 mm L x 48 mm H x 27 mm D.
  • Holding force 250kg-280kg.
  • Dual voltage 12 or 24Vdc field selectable.
  • Current draw 450mA @ 12vdc & 225mA @24vdc.
  • Suitable for single doors.
  • Non monitored.
  • Fire rated to 4 hours.
  • L and Z brackets are available PA770300901.
  • Glass door “U” bracket are available PA770300905.

PD-EMZ4 Datasheet
